CHEMOFAST offers a wide range of resin systems covering different performance levels and application requirements – from cost-efficient solutions to high-performance systems for demanding applications.
Reaction resin formulations are a key factor in the performance of chemical anchoring systems. They directly influence properties such as load capacity, curing behavior and resistance under various conditions.
High Performance
EP1000 (Pure Epoxy Next Generation 3:1)
Thanks to the wide range of options available for selecting epoxy resins and their hardener components, the properties of the resulting 2-component injection mortars can be optimally adjusted and tailored to specific performance requirements.
Once cured, these 2-component epoxy resin injection mortars are characterized by excellent thermal and mechanical properties, as well as outstanding chemical resistance.
Curing shrinkage is very low; combined with their excellent bonding properties, this ensures that outstanding load-bearing values are achieved—even in diamond-drilled boreholes and in applications involving larger annular gaps.
- Base: Epoxy resin
- Performance: High-performance bonding mortar
- Universal application: primarily for post-installed rebar in concrete
- Suitable for use in damp and water-filled boreholes
- Suitable for use in both hammer-drilled and diamond-drilled boreholes
- Excellent mechanical and thermal properties
- Outstanding chemical resistance
- Low shrinkage: suitable for larger annular gaps
- Low odor
- Flexible working time
- Suitable for seismic applications meeting performance categories C1 & C2
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast EP1000.pdf
SDS-Sicherheitsdatenblatt - Chemofast EP1000.pdf
English:

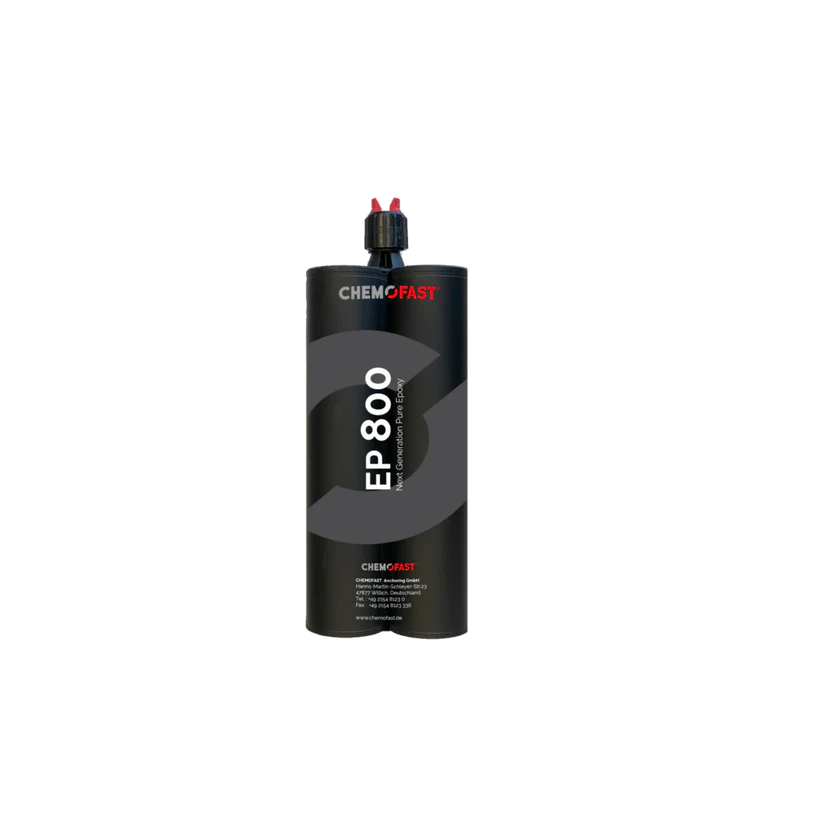

EP800 (Pure Epoxy 1:1)
Thanks to the wide range of options available in selecting epoxy resins and their hardener components, the properties of the resulting 2-component injection mortars can be optimally adjusted and tailored to specific performance requirements.
Once cured, these 2-component epoxy resin injection mortars are characterized by excellent thermal and mechanical properties, as well as outstanding chemical resistance.
Curing shrinkage is very low; combined with their excellent bonding properties, this ensures that outstanding load-bearing values are achieved—even in diamond-drilled boreholes and in applications involving larger annular gaps.
- Base: Epoxy resin
- Performance: High-performance bonding mortar
- Universal application: Primarily for post-installed rebar in concrete
- Suitable for use in damp and water-filled boreholes
- Suitable for use in both hammer-drilled and diamond-drilled boreholes
- Excellent mechanical and thermal properties
- Outstanding chemical resistance
- Low shrinkage: Suitable for larger annular gaps
- Low odor
- Flexible working time
- Suitable for seismic applications meeting performance levels C1 & C2
Data Sheets
German:
SDS - Sicherheitsdatenblatt - Chemofast EP800.pdf
English:

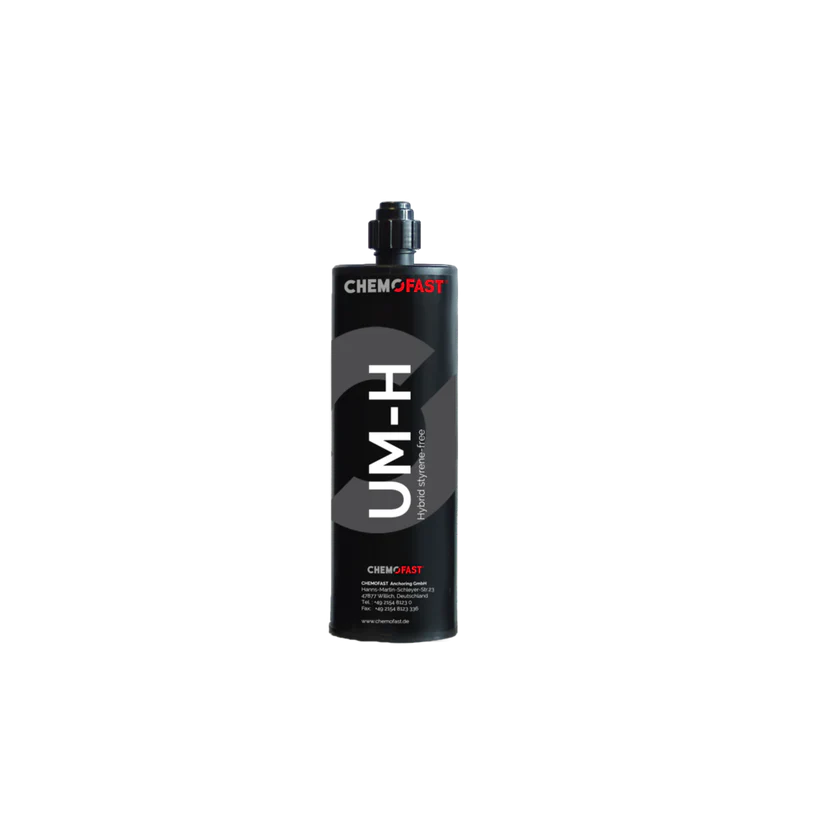

UM-H
High-performance resin for high-performance applications. This premium 2-component hybrid bonding mortar has been completely redeveloped from the ground up over recent years and delivers robust performance at high temperatures. In its cured state, the urethane-methacrylate hybrid mortar—or "UM-H" for short—exhibits very high chemical resistance as well as excellent thermal properties.
- Base: Methacrylate (monomers)
- Performance: High-performance bonding mortar
- The ultimate concrete specialist
- Also suitable for damp and water-filled boreholes
- Low odor
- Suitable for seismic applications meeting requirements levels C1 and C2
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast UM-H.pdf
SDS-Sicherheitsdatenblatt - Chemofast UM-H.pdf
English:
Premium
VK
Classic vinyl ester resins—and the two-component injection mortars produced from them—combine the excellent thermal and mechanical properties of epoxy resins with the ease and speed of application characteristic of unsaturated polyester resins.
These vinyl ester resins, representing a newer generation of development, are styrene-free, utilizing dimethacrylates as reactive diluents. These vinyl ester resins and the reactive resin mortars derived from them are distinguished, among other features, by their very high chemical resistance—particularly in alkaline media.
- Base: Styrene-free vinyl ester resin
- Styrene-free: Dimethacrylates are used as reactive diluents
- Performance: Very high
- Suitable for use in damp and water-filled boreholes
- Excellent mechanical and thermal properties
- Very high chemical resistance
- Suitable for use in aggressive environments
- Low odor emission
- Also available in specialized "Tropical" and "Winter" formulations
- Suitable for seismic applications meeting performance category C1 requirements
Data Sheets
German:
TDS – Technisches Datenblatt - Chemofast VK.pdf
SDS - Sicherheitsdatenblatt - Chemofast VK.pdf
SDS - Sicherheitsdatenblatt - Chemofast VK Nordic.pdf
English:
TDS - Technical Data Sheet – Chemofast VK.pdf

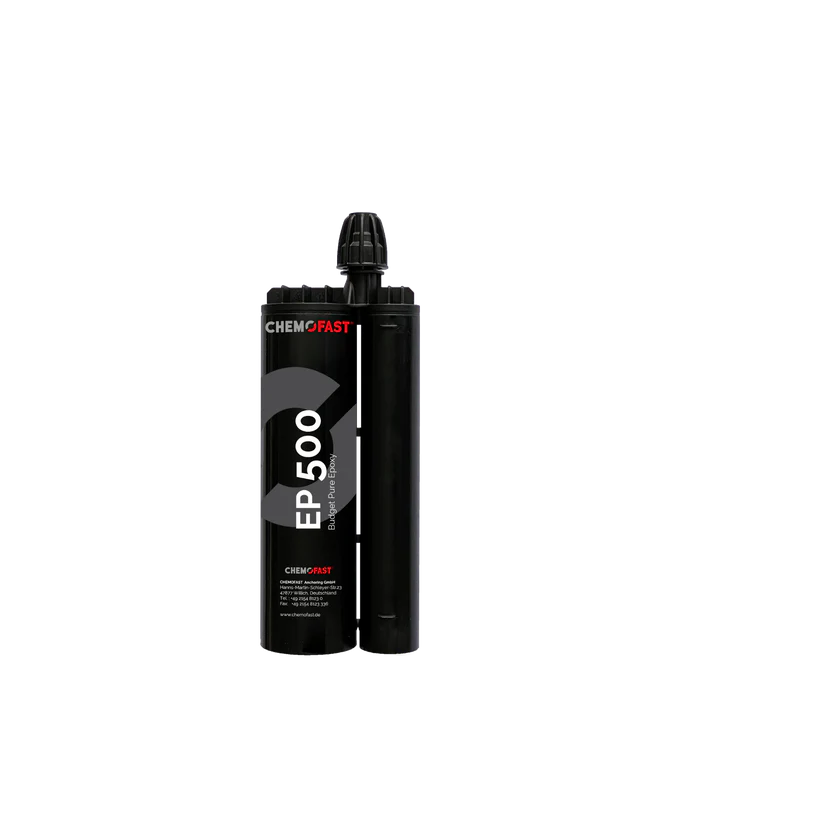

EP500
Thanks to the wide range of options available for selecting epoxy resins and their hardener components, the properties of the resulting 2-component injection mortars can be optimally adjusted and tailored to specific performance requirements.
Once cured, these 2-component epoxy resin injection mortars are characterized by excellent thermal and mechanical properties, as well as outstanding chemical resistance. Curing shrinkage is very low; combined with their excellent bonding properties, this ensures that outstanding load values are achieved—even in diamond-drilled boreholes and in applications involving larger annular gaps.
- Base: Epoxy resin
- Performance: High-performance bonding mortar
- Universal application: Primarily for post-installed rebar in concrete
- Suitable for use in damp and water-filled boreholes
- Suitable for use in both hammer-drilled and diamond-drilled boreholes
- Excellent mechanical and thermal properties
- Outstanding chemical resistance
- Low shrinkage: Suitable for larger annular gaps
- Low odor
- Flexible working time
- Suitable for seismic applications meeting performance categories C1 & C2
Data Sheets
German:
TDS – Technisches Datenblatt - Chemofast EP500.pdf
SDS - Sicherheitsdatenblatt - Chemofast EP500.pdf
English:
Budget

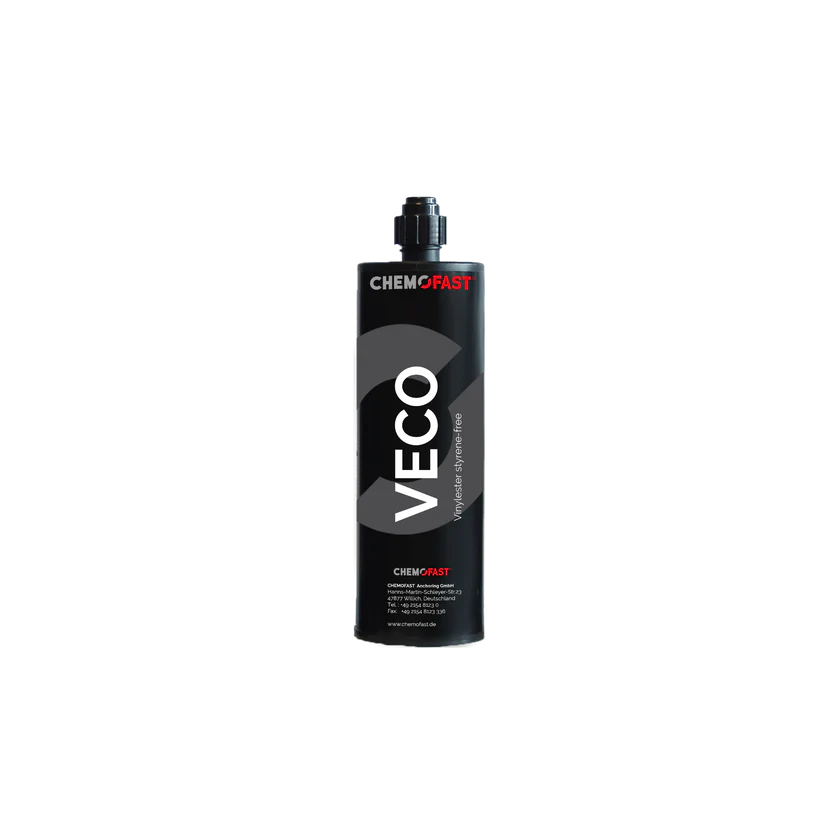

V-ECO
Classic vinyl ester resins—and the two-component injection mortars produced from them—combine the excellent thermal and mechanical properties of epoxy resins with the ease and speed of application characteristic of unsaturated polyester resins.
These vinyl ester resins, representing a newer generation of development, are styrene-free, utilizing dimethacrylates as reactive diluents. These vinyl ester resins and the reactive resin mortars derived from them are distinguished, among other features, by their very high chemical resistance—particularly in alkaline media.
- Base: Styrene-free vinyl ester resin
- Styrene-free: Dimethacrylates are used as reactive diluents
- Performance: Very high
- Suitable for use in damp and water-filled boreholes
- Excellent mechanical and thermal properties
- Very high chemical resistance
- Suitable for use in aggressive environments
- Low odor emission
- Also available in specialized "Tropical" and "Winter" formulations
- Suitable for seismic applications meeting performance category C1 requirements
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast VECO.pdf
SDS-Sicherheitsdatenblatt - Chemofast VECO.pdf
SDS-Sicherheitsdatenblatt - Chemofast VECO Tropical.pdf
English:
TDS-Technical Data Sheet - Chemofast VECO.pdf

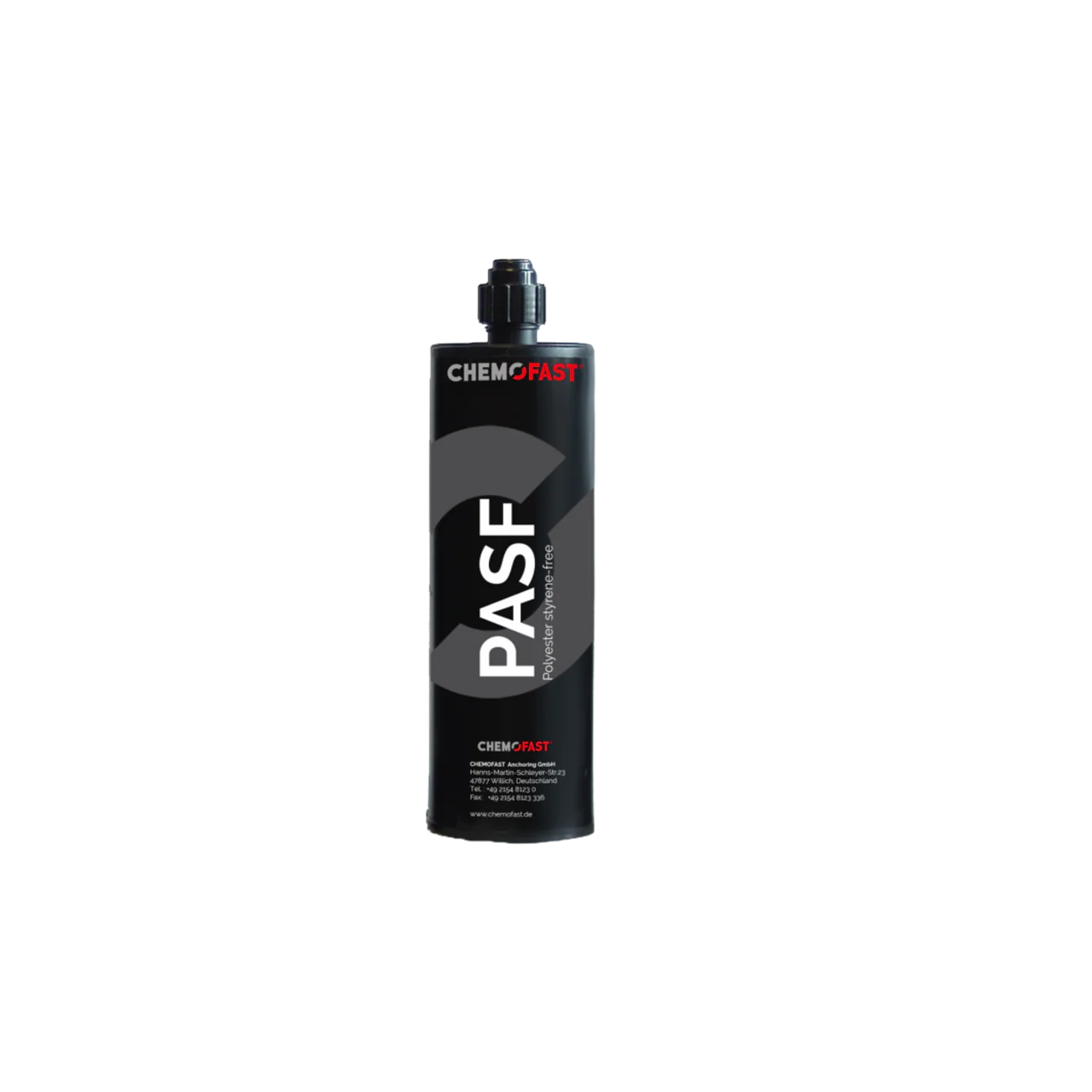

PASF
This represents the classic type of reactive resin used in the production of two-component injection mortars; this application utilizes both unsaturated polyester resins dissolved in styrene (the classic resin type) and styrene-free unsaturated polyester resins, in which styrene-related monomers serve as reactive solvents.
The two-component injection mortars produced from these resins are very easy and quick to apply. Furthermore, unsaturated polyester resins typically exhibit limited chemical resistance (particularly in alkaline environments).
- Base: Unsaturated polyester resin
- Classic bonding mortar system
- Performance: Standard
- Ideal for standard applications—especially in masonry and hollow brick
- Universal formulation
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast PASF.pdf
SDS-Sicherheitsdatenblatt - Chemofast PASF.pdf
English:

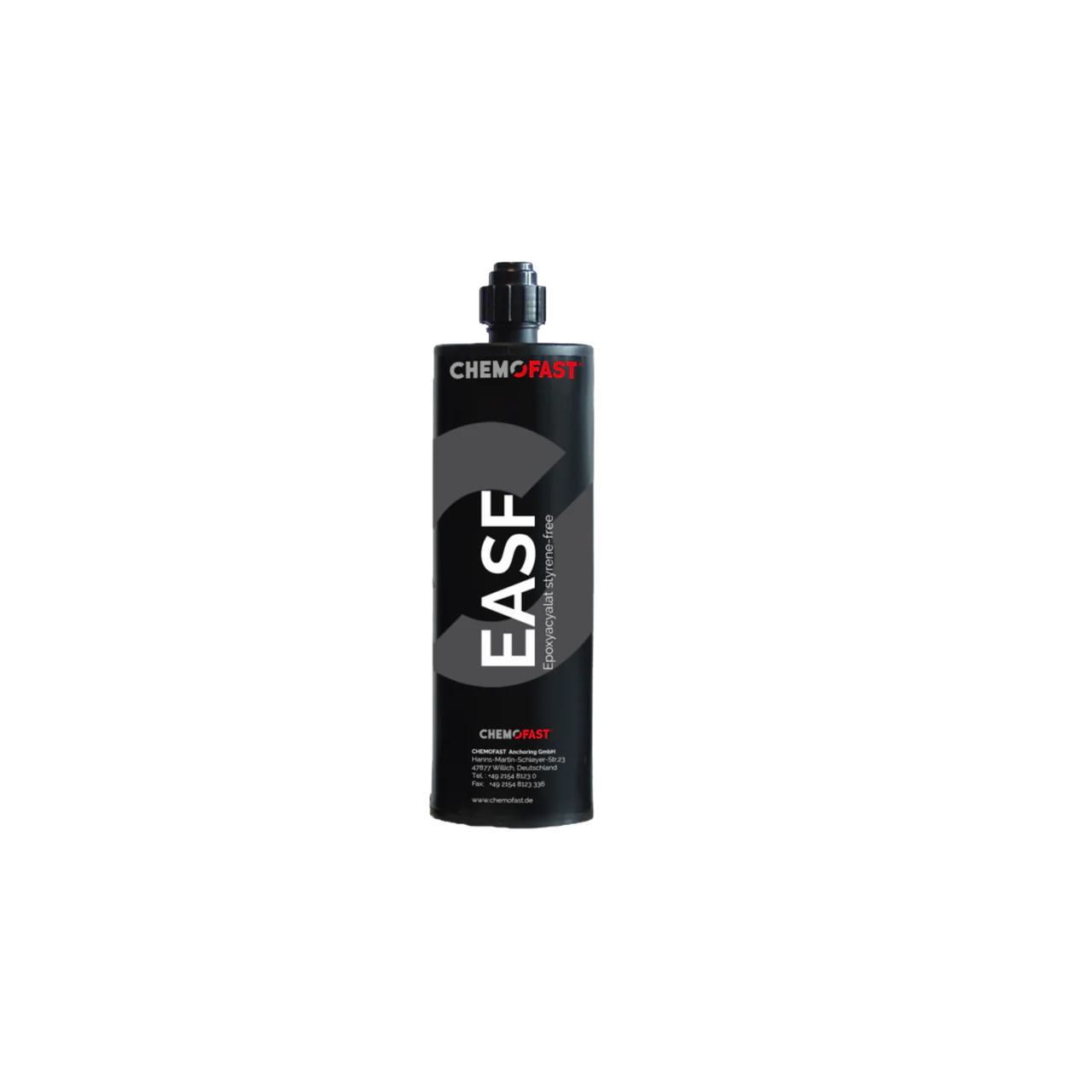

EASF
This type of reactive resin represents an evolution of unsaturated polyester resins toward vinyl ester resins, which are formally produced through the reaction of an epoxy resin with an unsaturated monocarboxylic acid.
The resulting two-component injection mortars exhibit improved physical and chemical properties compared to unsaturated polyester resins.
- Basis: An advancement of the polyester bonding mortar system
- Performance: Higher standard
- Suitable for universal application
- Also usable in damp boreholes
Data Sheets
German:
SDS-Sicherheitsdatenblatt - Chemofast EASF.pdf
English:
Low Budget

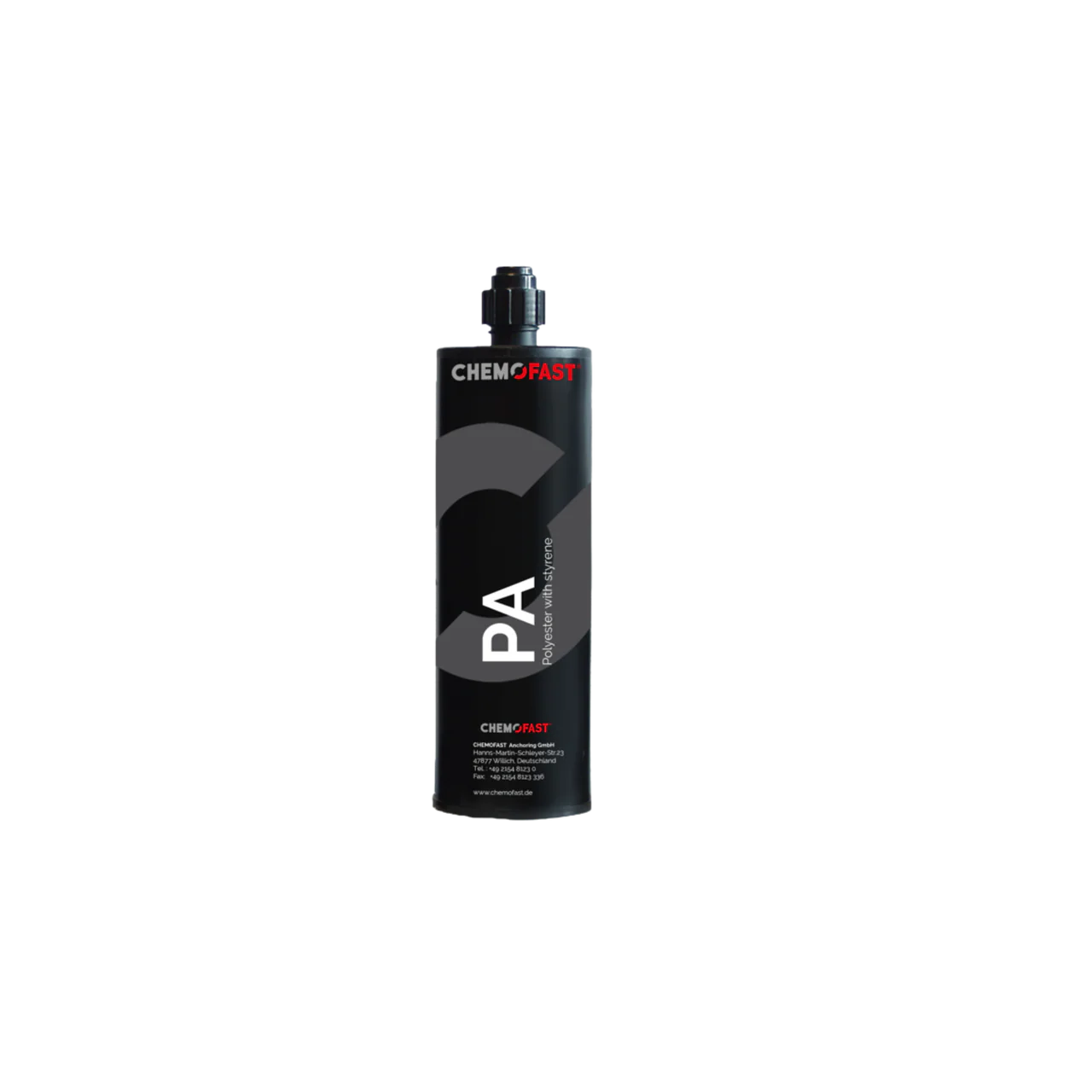

PA
This represents the classic type of reactive resin used in the production of two-component injection mortars; this involves the use of both unsaturated polyester resins dissolved in styrene (the classic resin type) and styrene-free unsaturated polyester resins, in which styrene-related monomers act as reactive solvents.
The two-component injection mortars produced from these resins are very easy and quick to apply. Furthermore, unsaturated polyester resins typically exhibit limited chemical resistance (particularly in alkaline environments).
- Base: Unsaturated polyester resin
- Classic bonding mortar system
- Performance: Standard
- Ideal for standard applications—especially in masonry and hollow brick
- Universal formulation
- Suitable for use in natural stone
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast PA.pdf
SDS-Sicherheitsdatenblatt - Chemofast PA.pdf
English:

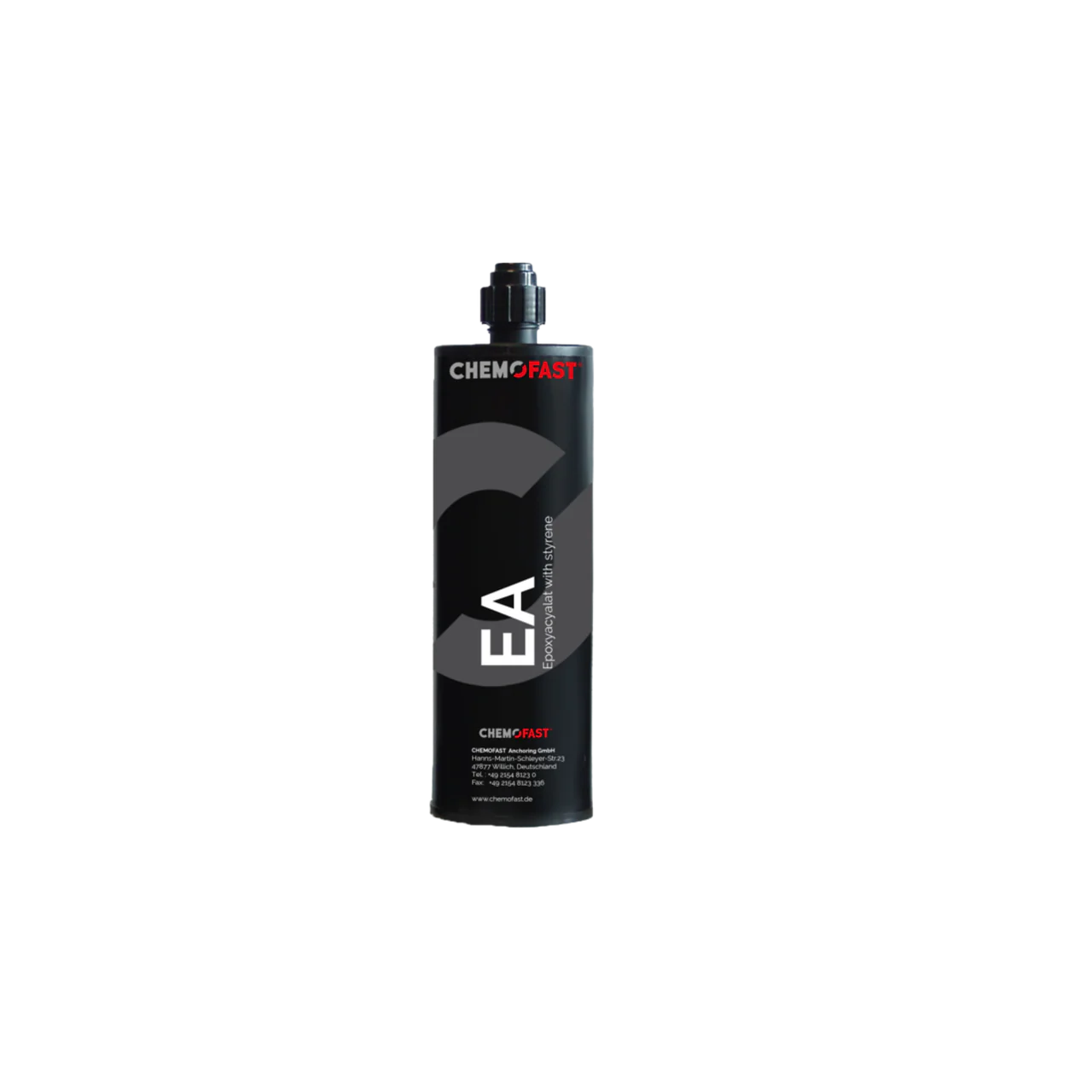

EA
This type of reactive resin represents an evolution of unsaturated polyester resins toward vinyl ester resins, which are formally produced through the reaction of an epoxy resin with an unsaturated monocarboxylic acid.
The resulting 2-component injection mortars exhibit improved physical and chemical properties compared to unsaturated polyester resins.
- Basis: An advancement of the polyester bonding mortar system
- Performance: Higher standard
- Suitable for universal application
- Can also be used in damp boreholes
- Suitable for use in natural stone (styrene-based)
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast EA.pdf
SDS-Sicherheitsdatenblatt - Chemofast EA.pdf
English:

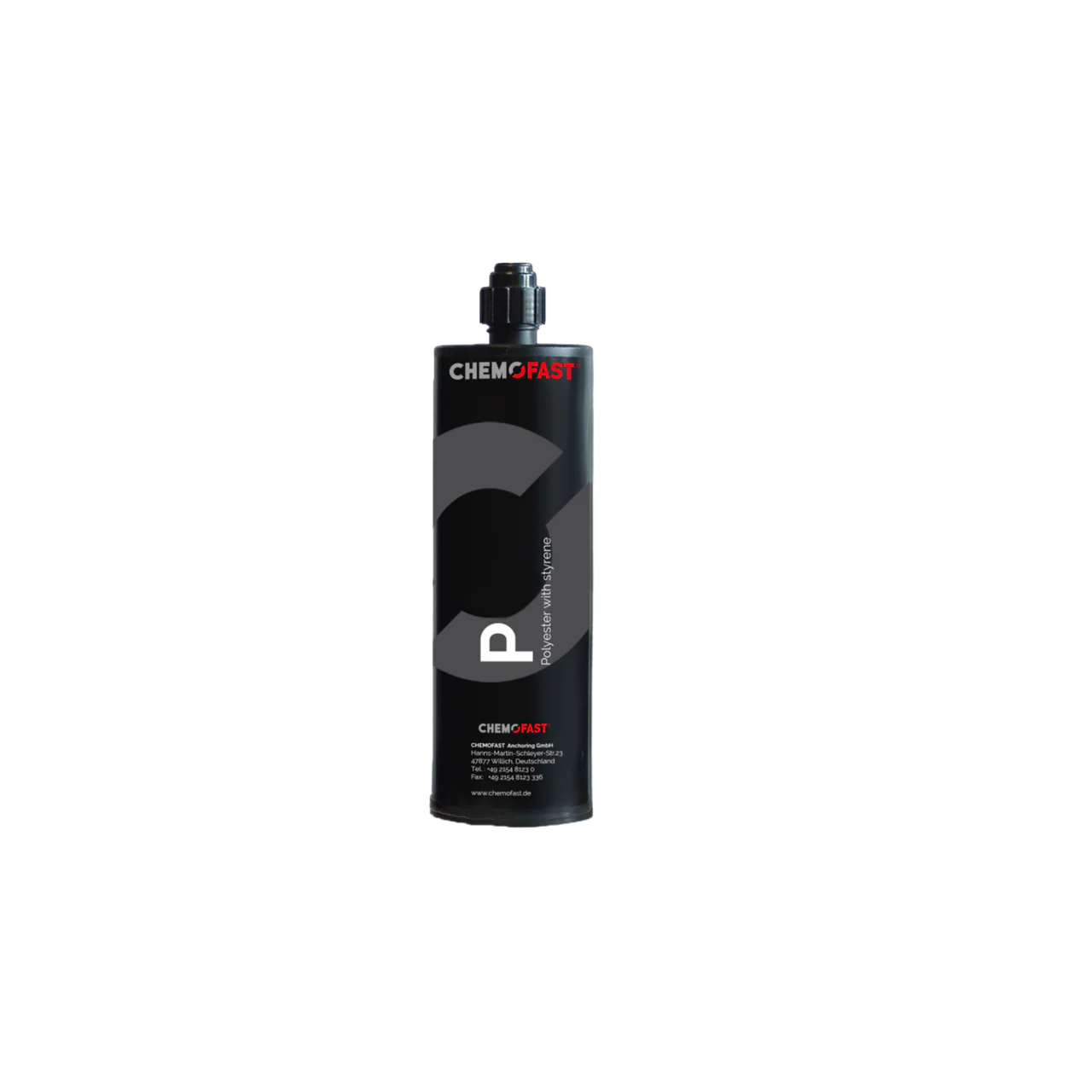

P
This represents the classic type of reactive resin used in the production of 2-component injection mortars. This category utilizes both unsaturated polyester resins dissolved in styrene (the classic resin type) and styrene-free unsaturated polyester resins, in which styrene-related monomers serve as reactive solvents. The resulting 2-component injection mortars are very easy and fast to apply. Furthermore, unsaturated polyester resins typically exhibit limited chemical resistance (particularly in alkaline environments).
- Base: Unsaturated polyester resin
- Classic bonding mortar system
- Performance: Standard
- Ideal for standard applications—especially in masonry and hollow brick
- Universal formulation
- Suitable for use in natural stone
Data Sheets:
German:
TDS-Technisches Datenblatt - Chemofast P.pdf
SDS-Sicherheitsdatenblatt - Chemofast P.pdf
English:

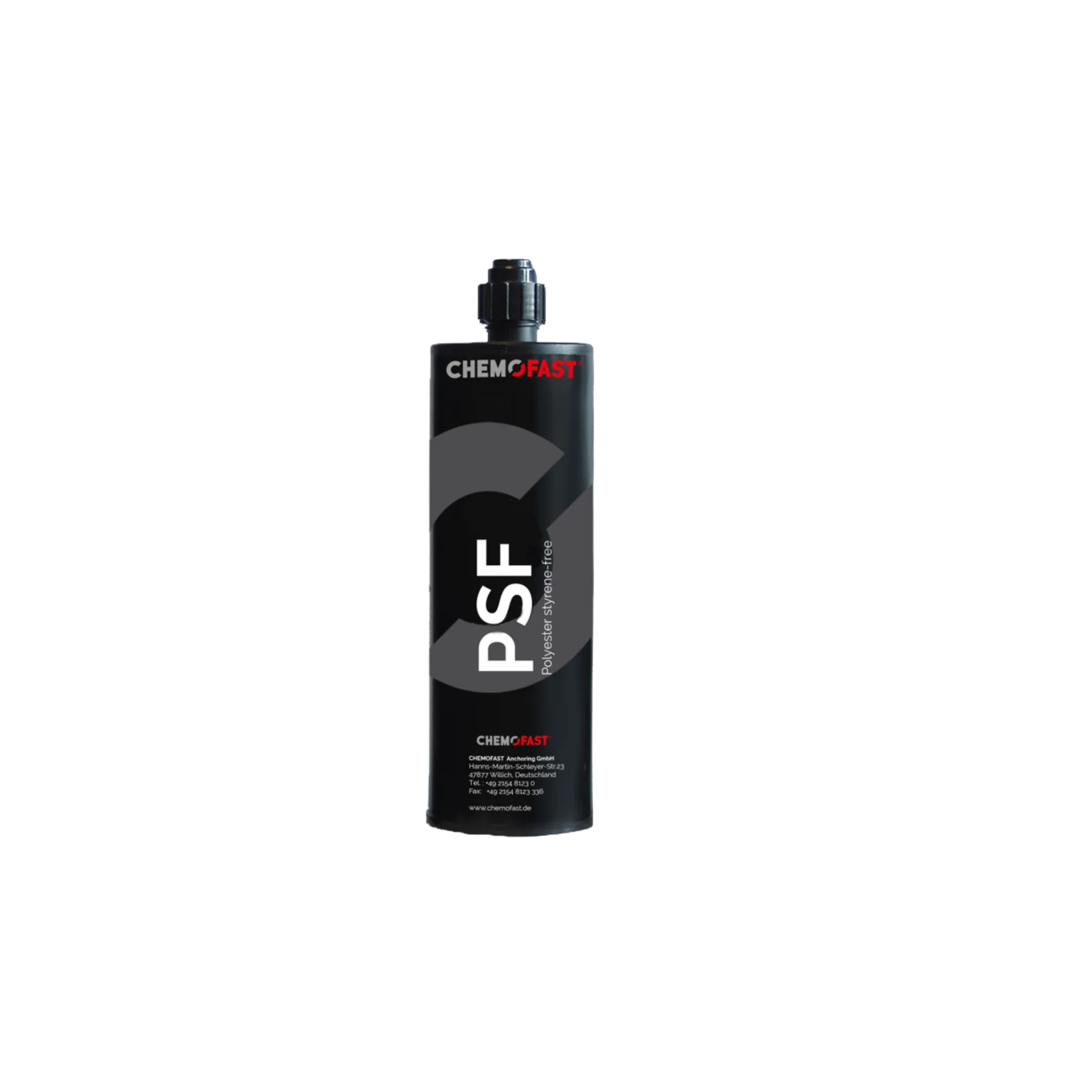

PSF
This represents the classic type of reactive resin used in the production of 2-component injection mortars. This category utilizes both unsaturated polyester resins dissolved in styrene (the classic resin type) and styrene-free unsaturated polyester resins, in which styrene-related monomers serve as reactive solvents. The resulting 2-component injection mortars are very easy and quick to apply. Furthermore, unsaturated polyester resins typically exhibit limited chemical resistance (particularly in alkaline environments).
- Base: Unsaturated polyester resin
- Classic bonding mortar system
- Performance: Standard
- Ideal for standard applications—especially in masonry and hollow brick
- Universal formulation
- Available sizes: 150 ml, 165 ml, 280 ml, 300 ml, 333 ml, 345 ml, 380 ml, 410 ml, 420 ml, 825 ml
Data Sheets
German:
TDS-Technisches Datenblatt - Chemofast PSF.pdf
SDS-Sicherheitsdatenblatt - Chemofast PSF.pdf
English:
